If someone has mastered 8,000 to 9,000 albums to date — many of them rock and pop DNA — they are probably doing something right. Bob Ludwig started cutting lacquers at A&R Recording with producer Phil Ramone [Tape Op #50] in New York. Later on, he worked for Sterling Sound and Masterdisk, eventually founding Gateway Mastering in 1992, in Portland, Maine. His credits include just about anyone you can imagine — Bruce Springsteen, Dire Straits, Lou Reed, Jack White [Tape Op #82], Queen, Metallica, Megadeth, The Band, AC/DC, Radiohead, and Elton John are only a few. Bob was kind enough to tell us about cutting lacquers, early digital times, his approach to a remastering job — as well as the relationship between sound quality and music.
I recently listened to Beck's Sea Change, and it reminded me of how much bottom end a CD can actually incorporate. Some early transferred CDs — or digital recordings, for that matter — are missing low end and front-to-back depth.
There are a lot of reasons for this. I started working with digital in 1978, when I mastered and cut a recording for Telarc, for vinyl, on the Soundstream digital machine. Until the invention of the Neve DTC-1 digital domain mastering console in 1987, and the Daniel Weiss BW-102, there was no way to master and stay in the digital domain. One always had to play back the digital master through a not-so-great Sony PCM-1610 digital-to-analog converter [DAC], do all the mastering in the analog world, and re-record it back into digital through an even less-good analog-to-digital [ADC] Sony converter for CD — first the Sony PCM-1600, then 1610 and finally the 1630. For a while, as everything was 16-bit — even for post-production and mastering — simple level changes sounded dicey in the digital domain. Digital equalization was initially so horrible and brittle; no one would use it. The PCM-1600 converters were a "ripped from the textbook" industrial design converter that had all those sound qualities you describe. Some great digital recordings, like the Rush's Moving Pictures CD, were recorded with it; but the artists and producers mixed while listening through its output, so they adjusted EQs and levels to accommodate the sound of the converter. The invention of the CD meant that there were now tens of thousands, and then millions, of DACs being sold and all R&D went into developing better DACs. I remember when there were no more than a handful of ADCs in all of New York City! The analog to digital converter took a while for developers to really pay attention to it. In my opinion, it wasn't until the middle 1990's that some really first-rate converters were invented. The first Sony digital editors, which were necessary for creating the CD masters, did not have dither. Even their manual suggested passing through the -60 dB area of the fader as quickly as possible to avoid digital distortion when one had to do a digital fade! The widespread use of dither — which makes low-level digital go from horribly distorted into extremely low distortion, and gives the ability to hear sounds below the least significant bit, was a major leap in the improvement of CD sound.
I read that when transferring some '60s and '70s records to digital for the first time, some engineers kept EQ settings originally meant to accommodate vinyl. Do you think that's part of the problem?
Well, what happened was merely a matter of economics. Mastering engineers had always mastered with the vinyl disk in mind. When they made mastered, equalized tape copies for cassette duplication, it contained all the engineering optimized for vinyl; which means making sure the inner bands had adequate top end to counter the diameter equalization losses inherent in the physics of vinyl disks. Sometimes the very lowest bass frequencies were somewhat "mono-ed" to make the groove easier to cut, and to prevent skipping from the groove thinning out. CDs only sold 800,000 copies total for the USA in 1983, jumping to 5.8 million in 1984, to over 100 million by 1987. CD sales didn't exceed vinyl until 1992. The Dire Straits Brothers in Arms CD I mastered in 1985, one of the very first albums recorded on the Sony 24-track digital machine, was the first CD I mastered that was totally mastered for the CD medium. It was also longer than the vinyl version. That original version had to be mastered in the analog domain, in spite of how great Neil Dorfsman's mixes were. Please re-buy my latest all-digital remastering of it; it's how I always wanted it to be.
Some remasters of old albums shoot for a contemporary "bright and loud" sound. How would a flat transfer benefit today — due to modern converters, playback electronics, etc. — in comparison to the first CD version some 30 years ago?
In the past 30 years, every aspect of the recording chain has dramatically improved. I have five different analog playback electronics from which to choose for the playback of the masters, including a Studer A820 and a modified Ampex ATR-102, with both balanced and un-balanced outputs, as well as the discrete Class A Aria solid state electronics and the Esoteric Audio Research tube electronics. I recently mastered Elton John's 40th Anniversary Edition of Goodbye Yellow Brick Road; that involved choosing the correct 1/4-inch tape playback head. There are two standards for 1/4-inch tape: the USA head, which has a 2 mm guard band between the left and right heads, versus the European 0.75 mm head — which was used when they recorded Goodbye Yellow Brick Road — so reproducing the tape meant that there wasn't the extra bass bump that would have happened with a mismatched playback head. The new Transparent Audio cables I use throughout the studio simply pass more musical signals than even their original cables did when I first outfitted Gateway Mastering with them in 1992. The Apogee Symphony, Pacific Microsonics, dCS, and Horus converters I use are truly superior to what we had 30 years ago. My [SPL] 8-channel analog console is a state-of-the-art design, with 124-volt DC rails — something unheard of 30 years ago, and still almost never pushed to that extreme in most audiophile designs. It never distorts. The [Merging Technologies] Pyramix workstation is also state-of-the-art. In addition, our studio is properly grounded; we run the studio off huge batteries and create our own 60 Hz AC power.
Let's talk about the starting point for a remastering job. I think the term "master tape" often gets confused with the actual mastered tape. When remastering, do you create a new mastering instead of the old one, or do you work on top of it?
A "master tape" is the original mix approved for the production of the album, ready to be mastered. A "master take" would be the choice of the sometimes hundreds of mixes that were created and used for mastering the final album. An "EQ master" or "production master" would be the approved mastered files [or tapes] that were used for production. I just did a big remastering project, and the record company lost the master tapes. We had to use an analog copy that the artist had for his personal files. Now that safety copy would now be re-labeled as a "master." When I do a remastering job for a client, the ones with a budget and time try to find me all the original master tapes, or digital files, for me to do my best, like the recent Elton John Goodbye Yellow Brick Road or all the Queen remasters from a few years ago. This is the best situation. Sometimes the record label does not want to ship the original master tapes to me from their library and insist on sending me a flat digital transfer for me to master from. This removes my ability to choose which different tape electronics and head combinations sound best to my ears, which is a big problem for me. In addition, sometimes not every cut from an album is in proper azimuth, and the label often does not correct for this when making the transfer. An even worse situation is when the label loses the master tapes and only has the commercial CD for me to work from, in which case I have to master on top of what is there. If they over-compressed it originally, there is no way to undo that.
Mastered for iTunes
Apple's attempt to present better sounding audio, Mastered for iTunes (MFiT), has been brewing behind the scenes since 2008, when legendary mixer Bob Clearmountain [Tape Op #84] and Betty Bennett, co-founder and CEO of Apogee Electronics Corp, approached Apple's Bill Stewart to discuss concerns about the lack of fidelity of the music sold in the iTunes' store. Apple took the criticism to heart and began an 18-month project to improve the quality of the Apple-encoded AAC iTunes files. During this time, many audio engineers devoted time and hours to assist in the project. Soon Maureen Droney, Senior Executive Director of the Producers & Engineers (P&E) wing of The National Academy of Recording Arts & Sciences (NARAS, i.e., the Grammy organization), became involved and things were in motion. Apple started using 24-bit masters (instead of 16-bit CDs), combined with new Apple encoding programs, to create these new iTunes files. In 2012 Apple rolled out the Mastered for iTunes program. The materials from Apple include a technical white paper and a set of software utilities. These tools allow the mastering engineer to do test files using the newest Apple encoder algorithms, check for clipping and intermodular peaks, and more. Obviously, there are different technical requirements for the MFiT program, and these applications assist the mastering engineer to meet the new guidelines. If a band is on a major label, the label can facilitate the MFiT files from the mastering engineer and Apple. Independent artistes and small labels need to find a mastering engineer who is on Apple's Approved List of MFiT Mastering Engineers. That engineer can then advise artists as to which integrator can convey files to Apple. The advantages of the MFiT masters are many: MFiT files sound better than those generated from a CD. Additionally, Apple will keep your sources (24-bit files) in storage. But in the age of Pono, and more talk of higher resolution music being delivered to consumers, how does this bode for MFiT?
-Garrett Haines
How do you approach the remastering of a record sonically, especially those that you had mastered originally?
When I'm asked to remaster a project I originally did, I try to have a discussion with the artist about what they wish to accomplish with the remastering. Some artists, like John Mellencamp, wished that the remastering could update the sound and make the old recordings sound like they were new. Others, like Bruce Springsteen, want to pretty much keep what he originally approved. Goodbye Yellow Brick Road had been re-mastered quite a few times in its long history. A friend of mine, who knew Elton John's producer Gus Dudgeon, told me which one of the remasterings had been personally supervised by Gus. When I bought that version, I found that it sounded more like the flat master than all the other remasterings I'd checked out, so I used Gus's work as a guide for my approach. Honestly, it was right in line with my original thoughts. Sometimes I wish I had been able to remaster recordings I originally did, like AC/DC's Back in Black, Led Zeppelin II and Houses of the Holy, or all The Band records I originally mastered. I'd love for people to hear the recently re-mastered early Bruce Springsteen titles that are Mastered For iTunes [MFiT] from the 24-bit sources, especially Darkness on the Edge of Town, which is one of my favorite albums by Springsteen. Those analog MFiT titles were transferred using the Plangent Processes [Tape Op #94] to lower the FM distortion, as well as correct wow and flutter on those early tape machines. I think the difference is quite amazing. [see page 80]
Where do you draw the line between noise removal and "sound reduction"?
For me, even the best de-hissers can cause artifacts that have to be traded off with the amount of de-hissing. On sparse intros or final chords I might throw in a few dBs of hiss reduction, if it gives me more than I lose. Even when mastering a new recording, there are often small ticks and mouth noises that are annoying. By selecting only the tick, which can be a fraction of a millisecond long, and remove it with intelligent de-clicking software, it is 100 percent impossible to hear an artifact. I use programs like Sonic Solutions NoNOISE, Cedar, Waves, or iZotope, depending on the problem. I recently removed the bleed of a click track coming through the artists' headphones during the ring out of a guitar note using iZotope RX 3, but I'm sure the Cedar Retouch or Algorithmix reNOVAtor could have done it as well. I would never try to draw a click away [on the waveform]. I know it works sometimes, but often the waveforms are so complicated that it would be impossible to draw out the click without further eliminating the good part of the music. Good restoration software looks at the problem area of the tick, does an FFT [Fast Fourier Transform] evaluation of the music before and after the tick, and creates an interpolation of what would have probably been there. If one owns several pieces of restoration software, usually at least one of them will solve the problem.

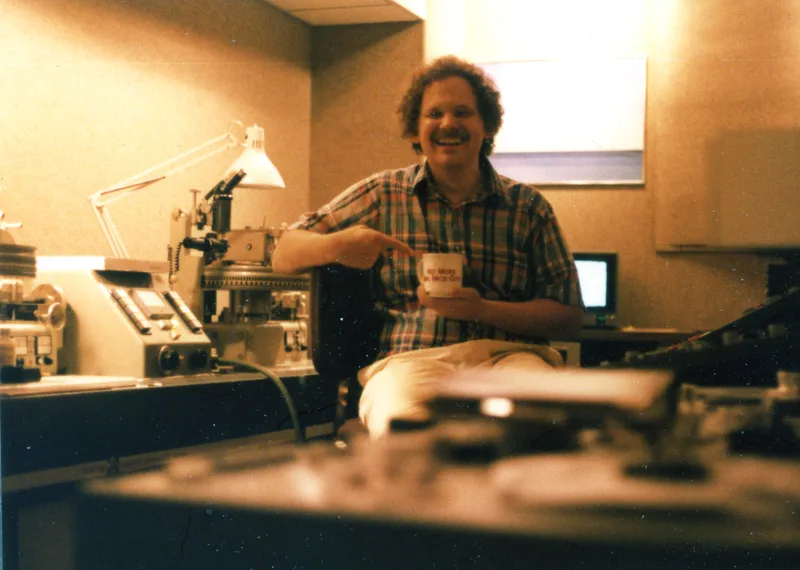

Bob at Masterdisk around 1983
How would you rate the relationship between sound quality and getting the song across to the listener?
This is a really complex question! Suffice it to say that Marshall McLuhan's "the medium is the message" applies here. There are so many approaches for how one can present one's new artistic vision to the public. Some of the songs on the new Beck album, Morning Phase, are purposely grungy; he wanted "a little grittiness" in the album. We also had clean, non-distorted mixes. On most songs he chose the clean ones, but some are gritty on purpose. That was his artistic choice as to how he wanted his music to be heard. Super-dynamic, normal dynamics, or super-compressed — those are all decisions the artist needs to make, and hopefully I can assist them with their vision.
On the other hand, there's music that works especially within the boundaries of limited sound quality. Bruce Springsteen's Nebraska comes to mind, which is haunting, despite its "lo-fi" 4-track cassette sound.
With Nebraska, Bruce and his producers remixed the 4-track Portastudio cassette through a Neve console and an SSL console, but Bruce liked the cassette. I got a Nakamichi Dragon, a state-of-the-art cassette machine. I corrected the azimuth and speed of the tape, but Bruce liked it left alone — running quite slowly when played on a proper cassette deck. A few times during the years, when "Atlantic City" became part of a compilation, I would ask Bruce if he wanted the speed corrected to the same 440 [Hz] pitch he used when he sang it, and the answer is always, "No." It is what it is, and it is a work of high art. Just recently I did a project with Jack White and Neil Young, called A Letter Home. Jack White refurbished a 1947 Voice-o-Graph vinyl recording booth, used to make one-off disks to keep, or mail to someone, to hear on their phonograph. It's almost impossible to keep on-speed, and, by design, the recording sounds not only like a 78-rpm disk, but a well-worn and ravaged one at that! Jim Farber at the New York Daily News brilliantly said it was "like some audio equivalent of a message in a bottle, long ago tossed into the sea." The record is sometimes hard to listen to, with lots of ticks, pops, and other noises, but it is 100 percent vibe and it works beautifully. A project totally worthy of the extreme effort they went through to create it.
You've referred to mastering as "the idea of bringing out the musicality of the material." Could you try to define musicality a bit further?
Musicality is a function of one's reaction to what one is hearing. Good mastering can bring out many details in the sound that might have been lost in the original mix. One can hear the details better and react to the subtleties that are inherent in the music. I would say it brought out the musicality inherent in the sounds that were recorded. When I master, I not only treat each song differently, if it needs it, but I consider every note of a piece to be sure everything is as good as it can possibly be. Sometimes a single bass frequency may need to be dipped for one note.
With digital masters, does a transfer to analog tape help to imbue musicality?
It is a case-by-case situation as to which is better. For most mix engineers, mixing to analog tape can beautifully glue the sound of their mix together in a way that digital can't — so far! However, for engineers like Bob Clearmountain or Chris Lord Alge, what comes out of the console is exactly what they want to hear. The soft saturation and head bumps — the warmth of analog tape — now become a bit muddy and lacking in clarity. Some producers of projects with limited budgets, where it was recorded and mixed in digital, have asked me to transfer the approved takes to analog tape and master from that. I would say that 30 percent of the time it works beautifully, and 70 percent of the time it doesn't. Those times that it does work, it is an amazing thing, and I still wonder why a transfer can imbue so much musicality into the sound. If you are doing a pop project, checking out the sound of capturing your mix on analog tape is a worthwhile exercise if you can afford it. For me, the choice of tape machine, the choice of the electronics, the brands of tape, and the way the tape machine is aligned can give me plenty of choices to determine how the transients and saturation sound.
You once said that today's converters, with great clocking, cannot be differentiated from the analog source by anyone you've tested.
I'm not saying that no one can ever hear the difference, I'm merely saying when someone comes into the studio for a quick visit and I play the source vs. high resolution digital, a 96 kHz, 192 kHz, or DSD copy, no one can immediately pick out the difference. Don't forget, these are all awesome converters. The quality of the engineering of the analog-to-digital converter and DAC is much, much more important to the musicality of the sound than the sampling rate could ever be. Our $8,000 converters at 16-bit/44.1 kHz sound way, way better than a 192 kHz playback from a $5 chip on a DVD-Audio player. I think the higher resolution sounds reveal themselves not in A/B testing, but in long periods of time. Play an entire album in a relaxed atmosphere at 96 kHz/24-bit, then, at the end, listen to it at 44.1 kHz/16-bit, and you'll get it right away. A/B testing, while the only scientific method we have, does not reveal too much with short-term back-and-forth comparisons due to the anxiety the brain is under doing such a test. The brain becomes very left-brain-technical, rather than right-brain creative and musical.
On the Gateway website, you mention the mastering of the Guns N' Roses Chinese Democracy record, and that you had decided to do three different masters, from loud to dynamic. You were thrilled that they chose the most dynamic version. Did the "dynamic" decision have an impact on the mastering scene?
Not that I'm aware of! When some A&R people are confronted with dynamic rock, like GNR or Jack White, they respond, "Those are established artists and they can get away with that. My new artist needs to be as loud as possible!" Nevertheless, like Jack White, Chinese Democracy sold millions worldwide and it broadcast beautifully. The point in mastering is to make a recording sound better than the original when played back at any level. In other words, heavy compression with a direct A/B to the less compressed sound can sound very impressive. But if one turns up the lower level version, as the consumer will naturally do, if it sounds better when you turn it up, than the loud version turned down, it isn't a good situation.
Bob Ludwig's Pono Thoughts
I think it is wonderful to have people look at their white iPhone earbuds and think, "Is this all there is? Is this as good as it can get?" So when people read of all the money that was raised to launch Pono's product, I'm sure some will get interested. When they hear of the $400 price tag of the Pono [playback device], or the $2,500 price of the Astell & Kern [AK240] high-end DSD player, a lot of them may not be interested, of course; but they will no longer blindly accept that what comes with their smart phone is as good as it could be. My concern is that high-resolution audio is an ecosystem: if one plugs the old Apple white earbuds into a Pono, or anything else, the poor quality of the earbud will neutralize the good qualities of the player. There are presently no accessories on the Pono website. Hopefully Pono will choose an appropriate earbud and headphone to use with the Pono player that will allow it to sound superb. Consumers do need to be further educated about what high-resolution audio is, and how important great headphones, earbuds, and speaker/amplifiers, along with a great DAC, are. Each one is critical, and when you own good-quality pieces, the whole can sound really great and satisfying. Pono is using a converter chip developed by Ayre Acoustics, who are very highly regarded in the audiophile world. I think that was a very good choice for an audio partner. The large files will be a concern to people used to iTunes downloads. Even a lossless ALAC [Apple Lossless] file is three times the size of a 24-bit "Mastered For iTunes" file.
You're also doing classical mastering. What different mastering mindsets are required for classical music, as opposed to rock and pop?
It's totally different. When I was cutting vinyl we would set aside especially quiet blank lacquers to use for classical projects. Also, due to the annoying ticks and pops of vinyl, the classical labels tried to get the best quality out of their pressing plants. In the digital world of classical music, the loudness wars are not applicable for the most part, although sometimes a classical client has been as desirous of as loud a record as the pop people! Most classical projects are like mastering for Will Ackerman, the founder of Windham Hill Records, and the most subtle changes to anything is easily appreciated.
Let's look at the mastering credit, which is still missing on some big records today.
Mastering engineers were almost never credited until 1972. That's five years of my career with no stats; and those were big records — Jimi Hendrix, Sly & the Family Stone, Led Zeppelin, etc. With The Band, my only credit is on the Moondog Matinee album, where it says, "Mastering as always... Bob Ludwig," or something similar. Figure I do four to five albums a week. That's 200 albums per year and 8,000 to 9,000 albums in 45 years, which seems right. I'm fortunate that my next job isn't dependent on credits from allmusic.com. Sometimes the record company itself forgets a credit, and thus allmusic.com has no idea who did what. New engineers trying to amass a proper resume can be frustrated by months of work on a project and then not being credited, with little recourse. The Recording Academy's Producers & Engineers Wing has an initiative called Give Fans the Credit, because of the very poor crediting situation in the industry as a whole.
Since you mentioned The Band — when you started working with them, there was a problem with cutting the Music from Big Pink record, right?
Like all hot LPs, especially back when there were a lot of bad playback cartridges out there, songs with a ton of bass on them would make the records skip. So it was always a question: what percentage of cheap turntables would skip, and would the returns from that hot cut be acceptable? I cut reference disks on Music from Big Pink, and when the union disk cutting engineer at Capitol Records in New York cut it, he put an 80 Hz high-pass on the cut. The Band wasn't happy, and I got to master most all of their records after that. The Band, the one with the brown cover and their photo, is my favorite. That original LP is apparently highly cherished among vinyl collectors.
You've mastered many Lou Reed records, starting with his experimental 1974 Metal Machine Music album. For many listeners, that's just noise, but it is also considered groundbreaking by avant-garde fans.
When I was at Sterling Sound and heard Lou wanted to work with me on his next album, I was thrilled. When it turned out to be Metal Machine Music I didn't bat an eye, as I came from the Eastman School of Music, and I loved contemporary music. For me, this was a continuation of electroacoustic music, like Iannis Xenakis' composition Bohor in 1962, which I mastered in 1970 for Nonesuch Records with Mr. Xenakis in attendance. I did a lecture at Eastman a while ago on the continuum between classical and rock music, and played examples of Bohor and Metal Machine Music for the audience. I asked them which was classical and which was rock, and no one could distinguish the difference — which was my point entirely. The original Metal Machine Music version was in Quad. It was cut at RCA studios using their new Quad cutting system at 1/3rd speed. 1/2-speed cutting wasn't possible quite yet!
Half-speed is now marketed as an "audiophile" technique for vinyl enthusiasts. What's the difference to cutting lacquers at full speed?
This should be a book chapter! Half-speed cutting was a technique apparently developed in Europe to get better high-frequency response, back when cutter heads were not able to withstand the heat that high frequencies create on the coils. The problem is that the RIAA cutting and playback curve [which radically changes the frequency response to work on vinyl] is not a simple curve. When cutting at half-speed, one has to re-adjust the RIAA curve to make it play back correctly at full speed. Halving it involves adding extra, strong, equalization in the chain, which adds ringing and all the other bad things equalizers can do, especially in the analog world. Also, if a cutter head was mechanically flat down to 25 Hz at normal speed, at half-speed it effectively is only good to 50 Hz when played back at normal speed, so it is definitely a trade-off. In 1968, when I worked at A&R Recording Studios with Phil Ramone we did half-speed cutting on some projects where the trade-off was worth it. The Neumann SX 15 cutter head wasn't very linear. After the invention of the Neumann SX 68 cutter head, which was so much better in every way, there seemed to be no more big advantages to half-speed cutting; certainly no longer a clear advantage. There were several places in the USA that cut using the JVC system. When quad collapsed and was no longer used I figured they promoted it as an audiophile product. They had to do something with those lathes! Again, half-speed cutting is simply another engineering tool. Do an A/B test of half-speed and normal cuts, and decide which sounds better!
In 2017, one of my best friends, Craig Alvin [Tape Op#137], kept texting me about a record he was engineering. He was saying how amazing the process was, and how awesome the results were. The album turned out to be Kacey Musgraves'
